Software for
Siphonic Roof Drainage

*the legendary KEIDEL software is now available
worldwide at a low price.
Only 999 €

FREE
1 hour online training

simple to learn * easy to use * considerable time savings

Buy Now DrainStar® Software with Your preferred pipe system

KEIDEL DrainStar® DSC-999 is based on the legendary Tailor-Made version of DrainStar® Siphonic Calculator with over 100 million square metres of successful siphonic roof drainage.

Drainstar Software with

DrainStar® Siphonic Calculator for siphonic roof drainage,
for windows 10, available via download for local operation.

  • User interface language (GUI): English
  • Language of all printouts: English
  • Measuring system: metric (SI)
  • Implemented pipe system: HDPE pipe system for installation in buildings according to DIN 19535 and DIN EN 1519
  • Pipe series: DN 40, 50, 56, 63, 75, 90, 110, 125, 160, 200, 250, 315 (changeable)
  • Connection methods: electrofusion coupling or butt-welding
  • Implemented siphonic roof outlets: DN 75, 100 (changeable)
  • Licences: 2
  • Unlimited runtime
  • Subject to change without notice

Buy Now

Short description
DrainStar® Siphonic Calculator for siphonic roof drainage,

  • for windows 10, available via download for local operation.
  • User interface language (GUI): English
  • Language of all printouts: English
  • Measuring system: metric (SI)
  • Implemented pipe system: PVC-U JIS pipe and fittings for drain: Pipes JIS K 6741 (Class VP/AW) plain ended.
  • Fittings JIS K 6739
  • Pipe series: DN 50, 65, 75, 100, 125, 150, 200, 250, 300 (changeable)
  • Joining System: Solvent cement, fitting to fitting connected with a short pipe.
  • Two pipes connected with a coupler or with a reducer.
  • Implemented siphonic roof outlets: DN 75, 100 (changeable)
  • Licenses: 2
  • Unlimited runtime
  • Subject to change without notice

Buy Now

Short description
DrainStar® Siphonic Calculator for siphonic roof drainage,

  • for windows 10, available via download for local operation.
  • User interface language (GUI): English
  • Language of all printouts: English
  • Measuring system: metric (SI)
  • Implemented pipe system: Cast iron pipe SML (hubless) according to DIN EN 877, DIN EN 1561
  • Pipe series: DN 50, 80, 100, 125, 150, 200, 250, 300 (changeable)
  • Joining method: SML Couplings
  • Implemented siphonic roof outlets: DN 75, 100 (changeable)
  • Licenses: 2
  • Unlimited runtime
  • Subject to change without notice

Buy Now

Short description
DrainStar® Siphonic Calculator for siphonic roof drainage,

  • for windows 10, available via download for local operation.
  • User interface language (GUI): English
  • Language of all printouts: English
  • Measuring system: metric (SI)
  • Implemented pipe system: Hot-dip galvanised steel pipe DIN EN 1123
  • Pipe series: DN 50, 70, 80, 100, 125, 150, 200, 250, 300 (changeable)
  • Joining method: push-fit
  • Implemented siphonic roof outlets: DN 75, 100 (changeable)
  • Licenses: 2
  • Unlimited runtime
  • Subject to change without notice

Buy Now

FAQ

You have questions we have the answers.
If you need more informations you can contact us via email.

DSC-999 is a compact software version of the legendary Tailor-Made Version DrainStar® Siphonic Calculator with an application of over 100 million square meters of Siphonic Roof Drainage.

Each computer needs a license. This type of licence is also called "Licence per Seat".

The lifetime of the licence is not limited by Keidel DrainStar GmbH

We can reactivate the licence at the customer's request so that it can be used again for a new PC. The transfer fee is currently €99.

Only English is used in the DSC-999 software series to achieve wide international reach. Other languages on request.
Yes, personalisation with your logos is possible.

No, unless the customer orders additional services such as software training, licence transfer, or additional licences.

Pipework-Designer

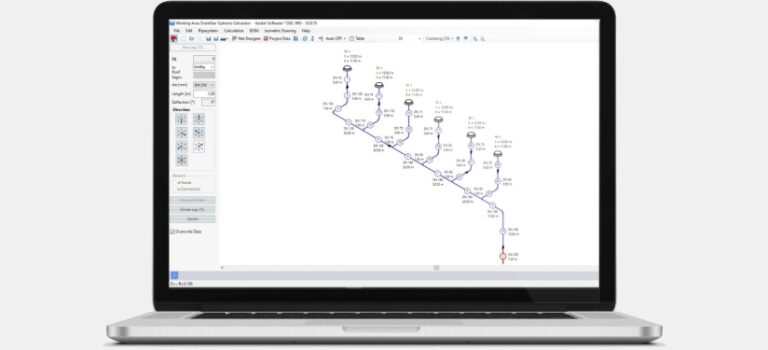

Isometric Drawing Generator
Parts lists generator with
- Parts List per Section
- Parts List per Pipework
- Parts List per Project
Operational roughness (changeable)
Automatic saving of the Project
Edit Dialog for Parts, Roof Outlets, Hydraulic Diameter

  1. The classic Balance Calculation, ideal for your pre-calculation.
  2. The Simulation Calculation is approved as physical testing according to EN 12056-3

Parts Lists, Calculation Result, Isometric Drawing, Pipework Properties

Yes, you can enter the local rain data in the software, wherever in the world a project may be located.

According to VDI 3806 using a rectangular safety overflow in a roof parapet or through a second pipework with siphonic system.

Yes, the parts lists in Excel format are ideal for adding materials as needed.

Yes, send all printouts simply and comfortably with the built-in PDF interface!

The DrainStar software DSC-999 has an integrated EMF interface developed by Microsoft to export the isometric drawing. The leading CAD systems can import EMF files.

Follow the example of our customer Maxflow and certify your version through the British Board of Agreement (BBA).

DrainStar software fulfils EN 12056-3, Gravity drainage systems inside buildings - Part 3: Roof drainage, layout and calculation

Delivery is carried out via customer download. For this we send the licence key and the download link to the customer via e-mail.

Further development of the KEIDEL Software depends on the needs/demands of the respective market.

The software is updated as required.

These costs depend on the amount of work involved and will be communicated to the customer before execution.

Yes, for this you need the following product data: Flow capacity, zeta value (single resistance values), inside and outside diameters as well as length of the connecting pipe.

Yes, you can remove pipe diameters from the list, and you can change the inner diameter and the value for the allowable negative pressure of the pipes.

  • HDPE Pipe System (EN 1519)
  • PVC-U Pipe System (JIS K 6741)
  • SML Cast Iron Pipe System (EN 1561)
  • Galvanised Steel Pipe (EN 1123)

Other pipe systems on request.

About us

In the mid-1990s, Dipl.-Ing. Rolf H. Keidel developed a soft- ware for planning and calculation of Siphonic Roof Drainage, which was sold worldwide under the name DrainStar® Siphonic Calculator. Mainly tailor-made software packages were developed for manufacturers and design and build companies.

The manufacturers also sold the Keidel software under their own name. These individually developed software packages required a long development phase and constant adaptations and were therefore only reserved for large companies due to the relatively high costs. It is estimated that around 100 million square meters of roof surface have been successfully calculated with the DrainStar® Siphonic Calculator.



Siphonic Roof Drainage has now become the standard roof drainage system because of its ecological and economic advantages. Many small and medium-sized companies are entering this lucrative market.



In response to this rapid development, Dipl.-Ing. Rolf H. Keidel developed a compact software series from the proven DrainStar® Siphonic Calculator at a low price and brought it into new company KEIDEL DrainStar GmbH.



The focus of the compact software series is fast and safe dimensioning of the pipework with suitable pipe systems. Adjustments can be organised by our customers themselves using password-protected tools. As with its big brother DrainStar® Siphonic Calculator, various parts lists, hydraulic calculation, isometric drawing, and a list of pipework properties are available.
